Commercial & Industrial Power Engineering
High-Performance AC/DC Power Conversion Solutions
Original Equipment Manufacturers (OEMs) across industrial, semiconductor, medical, and defense sectors trust Astrodyne TDI to deliver engineered AC/DC power supplies that function seamlessly under extreme operational conditions.
Our AC/DC power conversion platforms accept wide universal AC input ranges (85-264VAC, single-phase and three-phase), converting grid utility power into precisely regulated DC voltages. Built with high-frequency switching topologies, advanced thermal management, and robust electromagnetic shielding, our power supplies protect sensitive electronics from line transients, voltage sags, and grid instability while maximizing overall power density.
Engineered for B2B Systems Integration
From standard catalog components to custom-engineered power distribution racks, every unit is subjected to rigorous burn-in and 100% functional testing.
- Wide-range AC inputs: Universal Single-Phase & 3-Phase Delta/WYE
- Ultra-high efficiency topologies (up to 96%) minimizing heat dissipation
- Convection, forced-air, conduction, and liquid-cooled configurations
- Certifications: UL/EN 62368-1, IEC 60601-1 3rd Ed, SEMI F47, MIL-STD-810H
Form Factors & Configurations
Comprehensive AC/DC Power Supply Product Lines
Explore our extensive array of engineered AC/DC form factors tailored for low-profile electronics, heavy industrial machinery, cleanroom equipment, and mission-critical medical hardware.

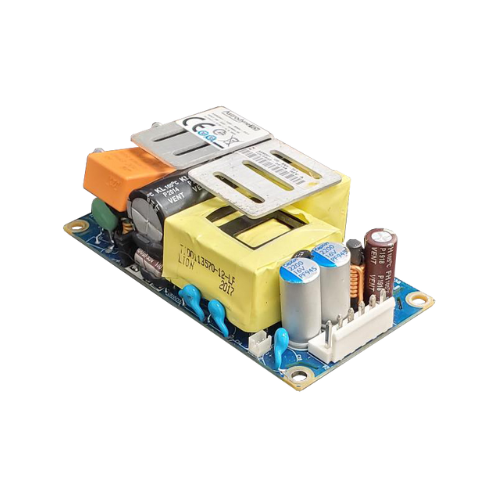

Open Frame Power Supplies
Compact, board-level switching power supplies optimized for internal system integration with efficient airflow and high power density.

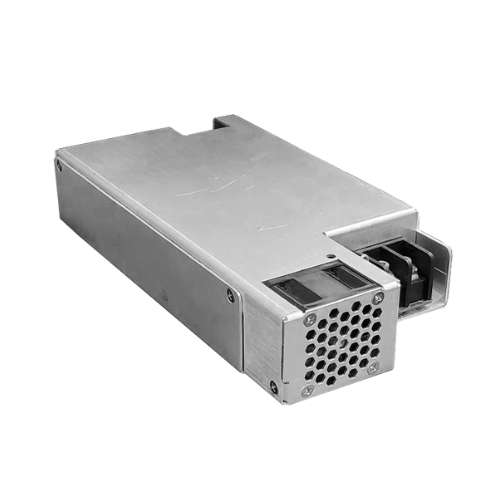

Enclosed Power Supplies
Durable metal-cased power units providing physical protection, safety shielding, and integrated cooling for industrial control cabinets.

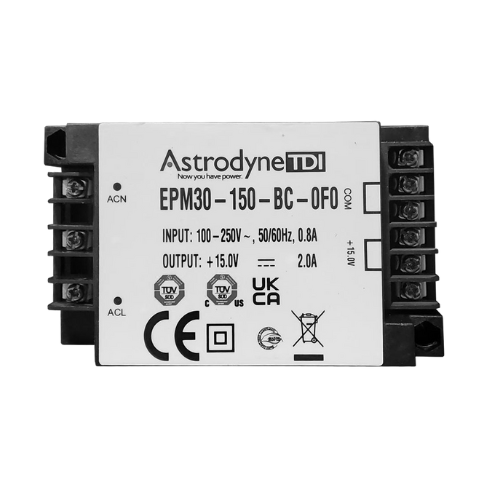

Encapsulated Modules
Fully sealed resin modules resistant to extreme dust, moisture, and high vibration. Available in PCB-mount and chassis-mount formats.

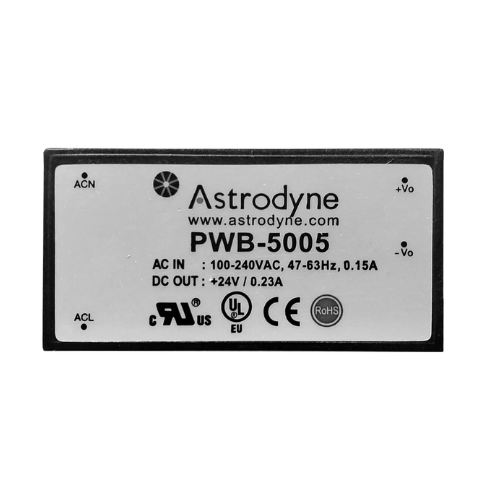

Board Mount AC/DC Supplies
High-density AC-to-DC converter modules designed for direct solder attachment to main printed circuit boards in space-constrained systems.

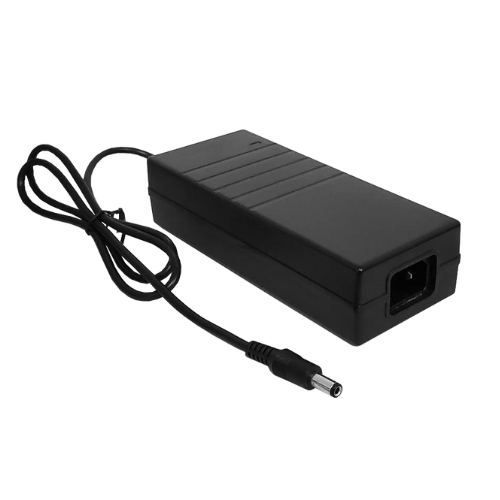

External Power Adapters
Desktop and wall-plug external power units with full DOE Level VI efficiency compliance and universal medical/industrial agency approvals.

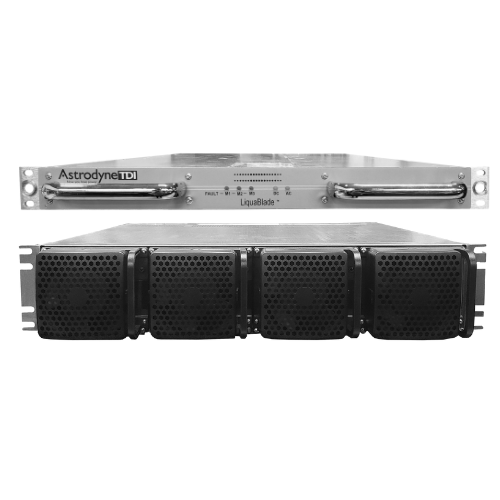

Rack Mount & Liquid Cooled
Scalable kilowatt-class power shelves featuring air- or liquid-cooling infrastructure for semiconductor fabs, data centers, and defense installations.
.png)
Ruggedized & HazLoc Supplies
Heavy-duty power converters certified for Hazardous Locations (Class I Div 2) and harsh shock, thermal, and ambient vibration profiles.
Custom AC/DC Engineering
Require specialized mechanical dimensions, multi-channel DC outputs, liquid cold plates, or custom firmware? Our engineering team builds to your spec.
Global Industry Applications
Application-Engineered Power Solutions
Different market sectors demand strict adherence to technical and environmental standards. Astrodyne TDI designs tailored AC/DC architectures to solve market-specific power challenges.
Semiconductor Fab Equipment
High-reliability kilowatt AC/DC modules meeting SEMI F47 voltage-sag immunity. Purpose-built for ion implantation, plasma etch, chemical vapor deposition (CVD), and electrostatic chucks (E-Chucks).
Industrial Automation & Robotics
Heavy-duty industrial power converters for motor drives, robotics, automated test equipment (ATE), process control, and renewable energy conversion systems operating under continuous duty cycle.
Medical & Healthcare Devices
IEC 60601-1 3rd Edition medical-grade AC/DC supplies offering 2×MOPP (Means of Patient Protection) isolation and ultra-low leakage current for surgical tools, MRI imaging, and life support apparatus.
Engineering Insights
Technical Considerations for AC/DC Power Architecture Selection
Converting alternating current (AC) from utility lines into stable direct current (DC) requires careful evaluation of efficiency metrics, thermal dissipation, EMC compliance, and electrical noise rejection.
Switching vs. Linear AC/DC Power Topology
Modern commercial and industrial electronics overwhelmingly rely on Switching Power Supplies (SMPS). By using high-frequency pulse-width modulation (PWM) switching networks, SMPS units offer efficiencies up to 96%, dramatically reducing physical transformer size and waste thermal heat compared to legacy linear power supplies. Linear power supplies retain niche utility where absolute minimal switching noise is imperative, but switching architectures dominate B2B OEM design due to their compact power density and wide AC voltage tolerance.
Understanding Grid Inputs & Transient Voltage Protection
Global electrical networks supply AC voltages ranging from 100VAC (Japan) to 240VAC (Europe & Asia) at frequencies of 50Hz or 60Hz. Astrodyne TDI AC/DC power supplies incorporate wide-range universal AC input stages (85–264VAC) equipped with Active Power Factor Correction (PFC > 0.98), minimizing harmonic distortion on utility supply lines and protecting against phase drops and line sags.
Thermal Management & Cooling Methodologies
Excess heat directly compromises MTBF (Mean Time Between Failures) and component operational life. Depending on system enclosure constraints, engineers can specify convection cooling (silent, fanless), forced-air cooling, conduction cooling via cold plates, or liquid cooling for multi-kilowatt high-density rack enclosures where fan noise and air movement are restricted.
Quality & Compliance Standards
Certified Manufacturing Excellence
Our global design and manufacturing facilities operate under stringent quality management frameworks to ensure complete product traceability and compliance with global safety codes.
ISO 9001:2015
General Quality Management System controlling all engineering design, vendor sourcing, manufacturing processes, and continuous improvement protocols.
AS9100D Certified
Aerospace Quality Standard verifying rigorous process controls, risk management, and product integrity for high-reliability military and aviation deployments.
ISO 13485:2016
Medical Device Quality Management certification ensuring comprehensive quality management throughout the lifecycle of critical healthcare power systems.
Frequently Asked Questions
AC/DC Power Supply Selection FAQ
Expert engineering guidance to help procurement managers and hardware design teams specify the correct power supply platform.
Engineers should evaluate continuous and peak power ratings (watts), input AC voltage range (85-264VAC universal grid standard), efficiency ratings (DOE Level VI, 80 PLUS Titanium equivalents), safety isolation standards (UL/EN 62368-1 for industrial, IEC 60601-1 3rd Ed for medical 2×MOPP), thermal dissipation method (convection, forced-air, conduction, or liquid-cooled), and EMC compliance limits (CISPR 32 Class B, MIL-STD-461).
Switching power supplies utilize high-frequency pulse-width modulation (PWM) to convert AC to DC with superior efficiency (up to 96%), compact footprints, and minimal heat output, making them ideal for modern industrial and medical systems. Linear power supplies use bulky line-frequency transformers and pass transistors, offering ultra-low noise output but significantly lower efficiency and higher weight.
Yes. Astrodyne TDI specializes in both modified-standard platforms and ground-up custom designs. Common modifications include altered output voltage trims, custom wire harnesses and connectors, conformal coating, potting for high vibration/moisture environments, tailored mechanical enclosures, dynamic digital control interfaces (PMBus/CANbus), and integrated EMI filtering.
Under IEC 60601-1 3rd Edition, 2×MOPP (Two Means of Patient Protection) mandates enhanced isolation (4000VAC withstand voltage and minimum 8mm creepage/clearance distance) to protect patients and equipment operators from electrical shock hazards in direct patient-contact environments.
Need Custom AC/DC Power Engineering Assistance?
Consult directly with Astrodyne TDI application engineers to analyze your electrical topology, thermal budget, and agency certification roadmap.
