Zero-Downtime Power Backup Solutions
Uninterruptible Power Supplies (UPS) for Critical Applications
Engineering continuous, isolated backup power with 2MOPP medical safety rating, double-conversion online topology, and long-life LiFePO4 battery architectures for surgical systems and mission-critical OEM electronics.
Failure-Critical Uptime Engineering
Medical-Grade & Industrial Uninterruptible Power Systems
In an operating room, automated fab line, or tactical environment, momentary power dropouts cause catastrophic tool aborts, corrupt sensitive telemetry, or compromise patient safety. Standard standby generators require up to 30 seconds to spin up and switch over—an unacceptable window for modern surgical robotics and mission-critical data processors.
Astrodyne TDI’s Uninterruptible Power Supply (UPS) platforms combine online double-conversion power conditioning, zero transfer switch time (0 ms delay), and certified galvanic isolation. Operating under ISO 9001:2015 and ISO 13485 quality systems, our UPS units eliminate total utility blackouts, voltage sags, frequency fluctuations, and line harmonics before they reach sensitive microprocessors.
How Double-Conversion UPS Protection Works
1. AC-to-DC Rectification: Incoming utility AC power is continuously rectified into regulated DC voltage, filtering out line noise, surges, and spikes.
2. Energy Buffering & Battery Management: Internal LiFePO4 battery arrays maintain optimal charge through individual cell monitoring and temperature compensation.
3. DC-to-AC Inverter Output: The inverter generates pure sine wave AC output to the load at all times, delivering completely glitch-free power transfer during grid loss.
Engineered Product Lines
High-Reliability Medical & Industrial UPS Platforms
Standard and modified UPS hardware designed to fit tight 19-inch rack-mount chassis and mobile cart envelopes while meeting stringent international compliance safety standards.
.jpg)

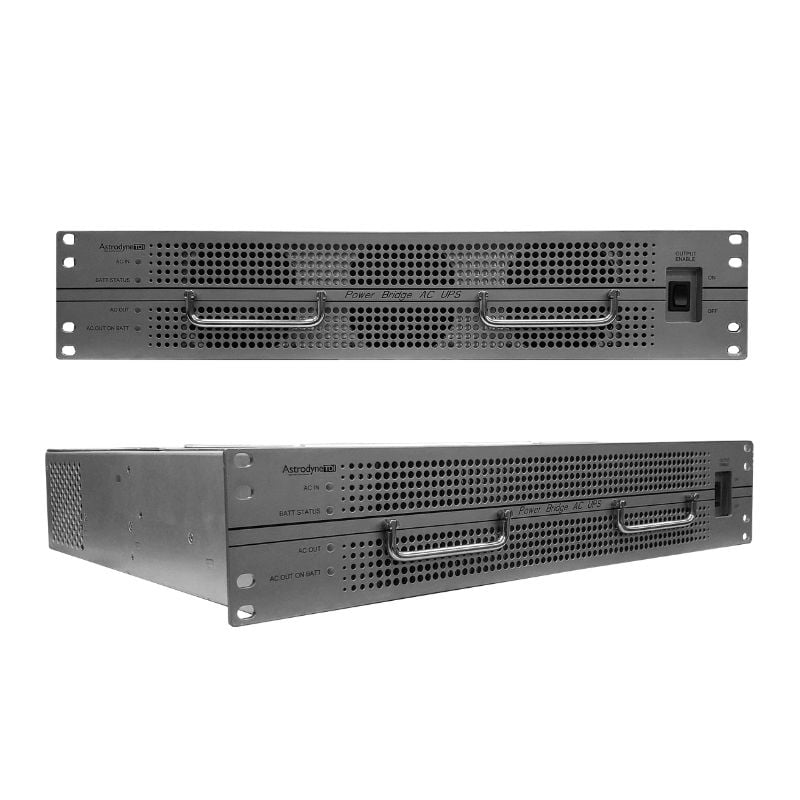

2kVA Rack-Mount Solution
The PowerBridge™ Medical-Grade UPS
Designed specifically for integrated surgical suites and high-density industrial control racks. PowerBridge delivers complete online double-conversion protection in a compact 2U form factor, replacing bulky external isolation transformers.
- Continuous 2 kVA output power in 2U-high, 19-inch rack-mount footprint
- Built-in 2×MOPP / 2×MOOP patient and operator safety isolation
- Advanced LiFePO4 (Lithium Iron Phosphate) battery chemistry with cell monitoring
- Up to ~10-year battery operational service life with intelligent temperature compensation
- Full load backup runtime >2 minutes (extended hold-up time at fractional load)
- Panel-mount IEC 60320 C20 AC input with four independent C13 circuit-protected outlets
.jpg)
Mobile & Portable OEM Integration

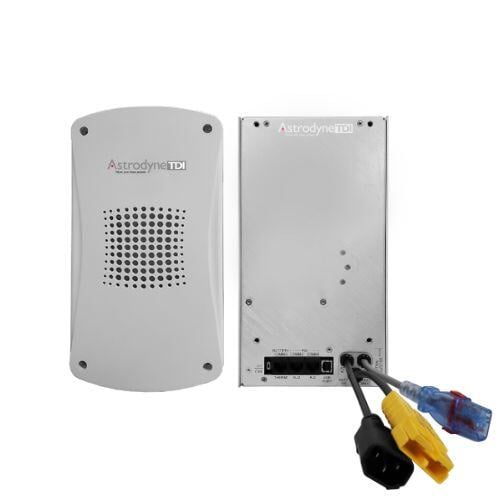

MediPower™ Medical Mobile UPS
An ultra-compact, lightweight aluminum-housed UPS engineered for mobile diagnostic carts, workstations, and portable medical machinery requiring continuous power during intra-hospital transport.
- Universal AC input range (90–264 VAC, 47–63 Hz) for global OEM deployment
- Pure sine wave output rated at ~170–175 VA at 120 VAC/60 Hz output
- High-dielectric isolation barrier: 4000 VAC withstand rating input-to-output
- Rapid battery recharge algorithm reaching 90% SOC in approximately 2.5 hours
- Rugged aluminum construction weighing only ~5.6 lbs for easy workstation integration
- Modbus and SMBus digital telemetry interface for system status reporting
Target Applications
Where Reliability Defines System Performance
From surgical suites to data processing shelters, Astrodyne TDI UPS units are designed around sector-specific environmental and electrical regulatory requirements.
Surgical Robotics & Navigation
Robotic Surgery & Operating Rooms
Prevents loss of surgical system articulation, camera stream interruption, and control lockups during sudden hospital power mains switching.
Diagnostic Imaging
CT, MRI & Ultrasound Workstations
Maintains clean, uncorrupted image acquisition and protects sensitive sensor electronics against input voltage transients and brownouts.
Industrial & Defense
Data Processing & Automation
Secures critical edge computing nodes, automated equipment controllers, and communication systems from line disturbance aborts.
Technical ROI & Risk Reduction
Key Benefits of Integrating Astrodyne TDI UPS Architecture
Deploying specialized UPS technology delivers measurable operational safety and economic benefits across multi-year equipment lifecycles:
- Zero-Downtime Operations: Instantaneous 0 ms transfer time eliminates system reboot cycles, tool aborts, and lost work in progress.
- Enhanced Patient & Equipment Safety: Embedded 2MOPP leakage control and high isolation voltage mitigate micro-shock hazards in clinical environments.
- Reduced Maintenance Costs: Next-generation LiFePO4 battery technology quadruples service lifespan over traditional lead-acid (SLA) batteries, minimizing field replacement calls.
- Regulatory Compliance Ready: Accelerates agency approvals by adhering to IEC/EN 60601-1 3rd/4th Edition, NAVSO P3641A design standards, and HALT/HASS stress testing profiles.
2×MOPP Isolation
Built-in isolation barriers meet highest patient contact protection standards.
10-Year Battery Life
Advanced LiFePO4 management maximizes cell life and energy density.
2U Rack Envelope
Saves critical vertical cabinet space for additional processing payload.
Active Telemetry
Real-time system communication via SMBus and Modbus protocols.
Quality Assurance Standards
Certified Manufacturing & Testing Facilities
Every UPS assembly undergoes strict functional testing and burn-in processes under globally recognized quality management systems.
ISO 9001:2015
Quality Management
Full design control, standardized manufacturing, and rigorous incoming component inspection.
ISO 13485:2016
Medical Device Quality
Certified quality management system for critical medical equipment component manufacturing.
AS9100D
Aerospace & Defense
Stringent traceability, configuration control, and failure-mode analysis for high-reliability systems.
Engineering FAQ
Uninterruptible Power Supplies Technical Questions
Direct technical insights from our applications engineering team regarding UPS selection, compliance, and custom modification options.
A medical-grade UPS incorporates reinforced isolation barriers providing 2×MOPP (Means of Patient Protection) and 2×MOOP (Means of Operator Protection), low earth leakage current (<300µA), and dielectric withstand ratings up to 4000 VAC. This design permits safe deployment within the patient vicinage without requiring bulky external isolation transformers.
Online double-conversion continuously converts utility AC to DC, and then back to pure sine wave AC output. Because the inverter is always supplying power to the load, there is true 0 ms transfer time during an AC grid failure. Standby or line-interactive UPS systems exhibit switchover delays (4–10 ms) that can drop sensitive microprocessors or interrupt robotic surgeries.
Lithium Iron Phosphate (LiFePO4) offers significantly higher energy density (up to 60% weight reduction), an operational lifespan of up to 10 years (3,000+ charge cycles compared to 300–500 cycles for SLA), rapid recharge capabilities (reaching 90% capacity in ~2.5 hours), and superior thermal stability without thermal runaway risk.
Yes. Our engineering team routinely modifies existing platform form factors, connector types, output voltage configurations, firmware telemetry parameters, ruggedized potting, and enclosure mounting interfaces to match your exact mechanical space envelope and electrical constraints.
Request Custom Technical Specifications & Datasheets
Speak directly with our power engineering team to review system load profiles, thermal envelopes, EMI compliance, or custom UPS modifications for your equipment design.
