Medical Industry Power Engineering
Uncompromising Power Reliability for Critical Healthcare Technology
In life-critical medical environments, power system failure is not an option. Astrodyne TDI brings over six decades of custom power conversion experience, offering a comprehensive lineup of medical-grade AC/DC power supplies, isolation transformers, and EMI filters designed for demanding healthcare equipment.
Our medical power architectures adhere strictly to global safety standards, including ANSI/AAMI ES60601-1, IEC/EN 60601-1 3rd Edition (2×MOPP), and IEC 60601-1-2 4th Edition EMC specifications. With ISO 13485 certified design and manufacturing centers in North America and Asia, we provide medical OEMs with traceable, long-lifecycle power platforms that safeguard both patient and operator.
Healthcare Sectors We Power
Engineered for Critical Medical Technologies
From high-peak surgical drive motors to delicate cardiac diagnostic tools, our platforms deliver clean, continuous, low-noise DC power.
.png)

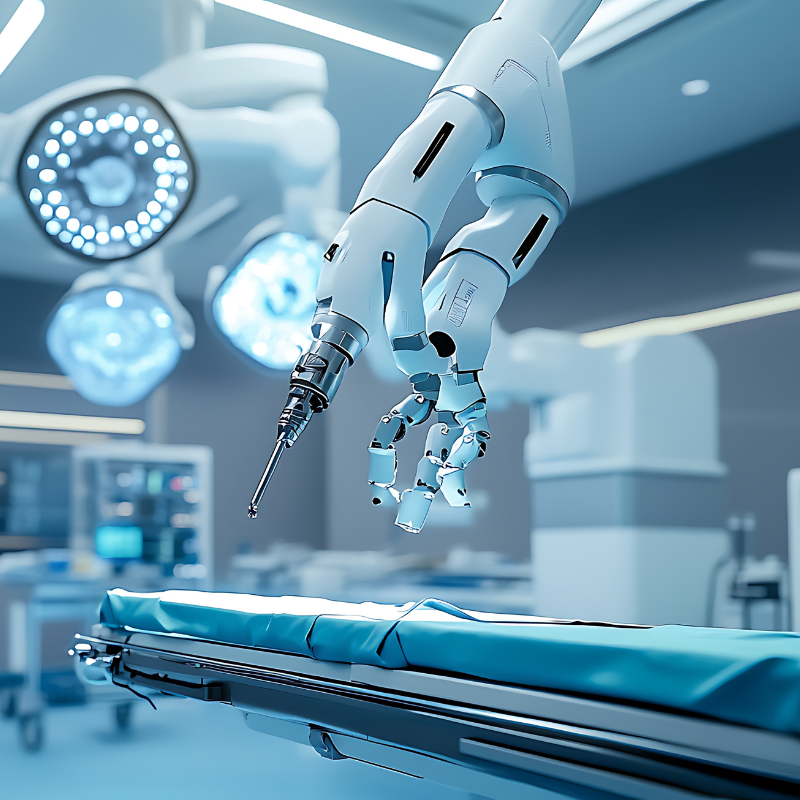

Robotic Surgical Systems
High peak power density, fast dynamic response, and low acoustic noise for surgical robotic arms, articulated tools, and vision control consoles.
Medical Navigation Systems
Ultra-low conducted noise and precise voltage regulation for endoscopic guidance, electromagnetic tracking, and surgical positioning equipment.

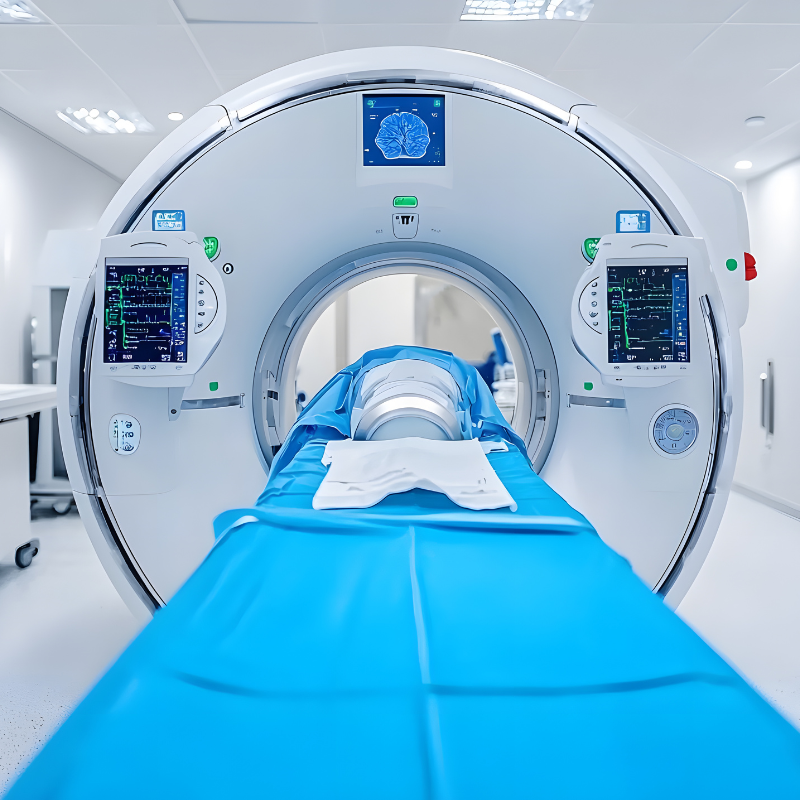

Medical Diagnostics & Imaging
Low leakage power platforms engineered for MRI, CT scanners, ultrasound carts, digital X-ray, and patient monitoring stations.
Broadest Medical Portfolio
Standard & Custom Medical Power Solutions
Offering power ratings from 5W to multi-kilowatts, available in open-frame, enclosed, encapsulated, rack-mount, and external adapter topologies.
AC/DC Power Supplies
Compact open-frame, U-channel, and enclosed power supplies featuring 2×MOPP insulation, low standby power, and ultra-low leakage current (<100µA).
Medical UPS & Mobile Power
On-line uninterruptible power supplies (including 2kVA rackmount and cart solutions) ensuring continuous operation during grid brownouts or transport.
Isolation Transformers
Toroidal power transformers and PowerMed isolation stations designed to step down voltage and provide absolute galvanic isolation in patient rooms.
Medical EMI/EMC Filters
Single-phase and three-phase line filters designed with low capacitive ground currents to prevent nuisance tripping while meeting CISPR 11 Class B.
Regulatory Compliance Framework
Understanding Medical Power Safety Classifications
Medical power supply selection depends heavily on the device's operational environment and degree of patient contact. Our engineering team assists OEMs in navigating complex international regulatory standards:
- MOPP (Means of Patient Protection): Required for devices directly connected to patients. Demands 4000VAC isolation voltage, 8mm creepage distance, and double insulation.
- MOOP (Means of Operator Protection): Designed for clinical laboratory and diagnostic equipment with no physical patient contact, meeting ITE standards (62368-1 / 60950-1).
- Type BF & CF Applied Parts: Developed for equipment used externally or directly on the human heart (e.g., defibrillators, ECG monitoring), requiring extremely low patient leakage currents (<10µA).
- IEC 60601-1-2 4th Edition EMC: Hardened immunity against electrostatic discharge (ESD), radiated RF fields, and electrical fast transients in modern hospital environments.
Dual Line Fusing
Built-in dual line input fusing to protect single-phase medical systems against line-to-neutral reverse polarity hazards.
Low Leakage Current Topologies
Specialized transformer construction reducing parasitic capacitance to maintain low earth leakage.
Long Lifecycle Assurance
Strict change-control management ensuring form, fit, and function stability over multi-year production cycles.
Technical FAQ
Medical Power Supply Selection Questions
Expert insights from our senior medical power applications engineers.
MOPP (Means of Patient Protection) provides higher isolation rating (4000VAC vs 3000VAC) and double the creepage/clearance distance compared to MOOP (Means of Operator Protection). MOPP is mandatory for medical electrical equipment where applied parts come into contact with patients, whereas MOOP applies to laboratory or control units accessed only by healthcare staff.
Our medical platforms meet ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, EN/IEC 60601-1 3rd Edition (2×MOPP), and IEC 60601-1-2 4th Edition EMC requirements. All manufacturing facilities maintain ISO 13485 certification.
Excessive leakage current passing through a patient’s body can cause cardiac disruption or micro-shocks. Medical power supplies utilize specialized low-capacitance transformers and filter designs to maintain ground leakage currents well below strict IEC limits (<100µA under normal conditions, <10µA for Type CF cardiac equipment).
Yes. In addition to our broad off-the-shelf standard offerings, we specialize in modified standard platforms and fully ground-up custom designs. This includes custom voltage rails, form factors, potting, conformal coating, and specific connector interfaces designed to match your system constraints.
Need a Medically Certified Power Solution?
Consult directly with our medical applications engineering team to review your risk management file and safety requirements.
