Explore our export-grade DIN rail profiles, aluminum alloy extruded mounts, and heavy-duty slide mechanisms manufactured to IEC/EN 60715 and international cabinet specs.

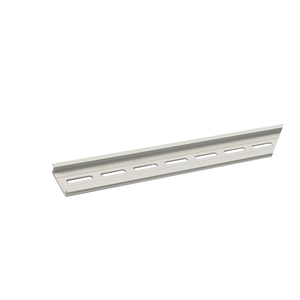

Precision cold-rolled mini DIN rail ideal for miniaturized circuit breakers (MCBs), terminal blocks, and compact relays in space-constrained control boxes.

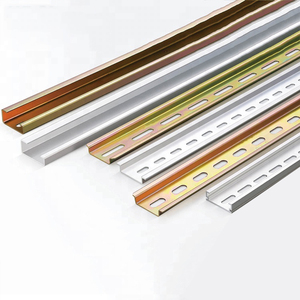

Heavy-duty TS-35/7.5 and TS-35/15 mounting channel engineered with zinc dichromate passivation for maximum mechanical stability and electrical conductivity.

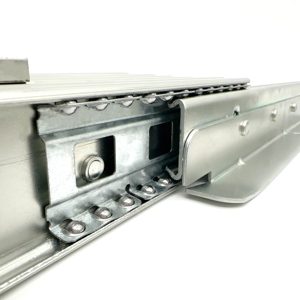

High-capacity structural steel slide channel engineered for severe loading, industrial server racks, retractable power distributions, and heavy cabinet assemblies.

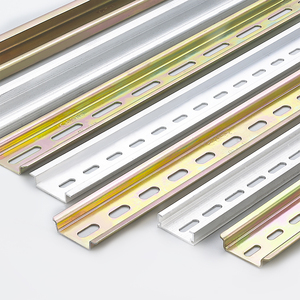

Corrosion-resistant anodized extruded aluminum DIN channel optimized for high-end medical equipment, switchgear panels, and lightweight enclosure systems.

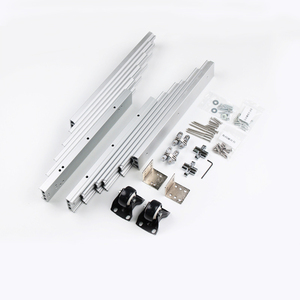

Ultra-low profile multi-section telescopic guide system designed for hidden equipment mounting, modular terminal racks, and ergonomic slide-out control drawers.

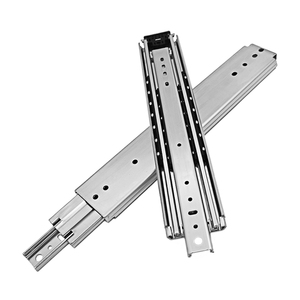

Industrial-grade hydraulic soft-closing runner rail engineered to eliminate vibration shock and protect sensitive electronic equipment mounted inside mobile consoles.

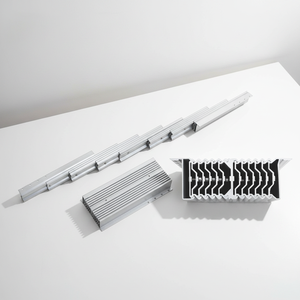

High strength-to-weight structural aluminum guide track designed to handle 51-100kg distributed loads in harsh chemical, outdoor, and marine control boxes.

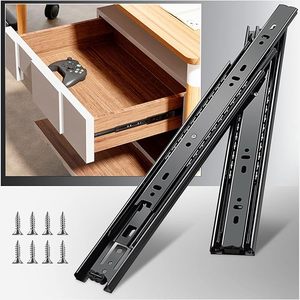

Electrophoretic black treated steel sliding mounting rail engineered for robust industrial racks, electronic loads, power supplies, and EMI filter housing chassis.
Selecting the correct standard mounting rail configuration is vital for structural rigidity, equipment vibration damping, and optimal protective earth grounding compliance.
| Profile Designation | Dimensions (W x H) | Standard Material | Yield Strength (MPa) | Primary Industrial Applications |
|---|---|---|---|---|
| TS-35 / 7.5 Top-Hat | 35 mm x 7.5 mm | Cold-Rolled Steel / Al 6063 | ≥ 280 MPa | Terminal blocks, PLCs, contactors, mini power supplies (Standard DIN) |
| TS-35 / 15 Deep Top-Hat | 35 mm x 15 mm | Zinc Dichromate Steel | ≥ 340 MPa | Heavy transformers, high-power DC/DC converters, high-vibration control panels |
| TS-32 G-Section | 32 mm x 15 mm | Passivated Steel / Stainless | ≥ 310 MPa | Legacy electrical cabinets, asymmetric high-weight terminal installations |
| TS-15 Micro Rail | 15 mm x 5.5 mm | Extruded Aluminum Alloy | ≥ 210 MPa | Miniature sensors, junction boxes, compact medical electronic instruments |
| Heavy Aluminum Extrusion | Custom Widths | 6061-T6 / A24 Alloy | ≥ 310 MPa | Power distribution chassis, heavy slide drawers, semiconductor cleanrooms |
Note: All China wholesale DIN rails manufactured by our facilities undergo continuous digital laser cross-section profiling to guarantee a dimensional width tolerance within ±0.15 mm, eliminating module fitment play and preventing component detachment under seismic or harmonic vibration testing.
Combining six decades of advanced metallurgical engineering, state-of-the-art cold-roll forming, and rigid ISO 9001:2015 / ISO 13485 quality control standards.
.jpg)
Our high-speed automated roll-forming production lines process premium steel coils and aluminum extrusions into flawless TS-35 and specialized mounting profiles. Every batch is subjected to rigorous dimensional, electrical bonding resistance, and tensile stress evaluations.
Cold-rolled structural steel with yield strength optimized for heavy power equipment, eliminating rail sag and structural distortion under full thermal load.
Clear zinc and alkaline-passivated surfaces ensure minimal ground path electrical resistance, providing superior earth return path performance for EMI/EMC filtering.
High-grade aluminum alloy profiles deliver excellent thermal conductivity to draw heat away from mounted power convertors, keeping cleanrooms clean and cool.
An in-depth analysis of structural changes in China's wholesale manufacturing sector, material technological advancements, and sustainable global supply chain strategies.
As Industrial IoT (IIoT) and Industry 4.0 transform control cabinet architectures, the humble DIN rail is evolving from a passive mechanical chassis into an active monitoring backbone. Future procurement strategies prioritize aluminum composite DIN rails with integrated micro-wireways, thermal sensor channels, and bus-bar grounding strips to support real-time panel diagnostics.
Global environmental legislation (EU RoHS 3 and REACH annexes) has forced the phase-out of hexavalent chromium (Cr6+) yellow zinc plating. China's leading wholesale manufacturers now utilize advanced trivalent chromium (Cr3+) electroplating and nano-ceramic organic passivation, achieving higher salt-spray resistance (up to 480 hours) while maintaining strict zero-hazard compliance.
In aerospace, electric vehicle (EV) charging infrastructure, and naval defense systems, weight reduction directly impacts thermal management and transit energy efficiency. High-strength extruded 6063-T6 and A24 aluminum alloys are replacing conventional heavy carbon steel DIN rails, reducing mounting infrastructure weight by up to 65% without sacrificing torsional rigidity.
Procurement teams are shifting away from buying stock 1-meter or 2-meter lengths that require on-site manual cutting, deburring, and slotting. OEM buyers now demand factory-direct custom cut-to-length DIN rails with specialized laser-etched alignment markings and custom slotted patterns, reducing cabinet assembly labor costs by over 30%.
Our DIN rails and mounting chassis support mission-critical equipment across healthcare, semiconductor manufacturing, industrial automation, and military aerospace applications.
Cleanroom-certified stainless steel and anodized aluminum DIN rails supporting patient isolation transformers, low-leakage power modules, and diagnostic surgical systems under IEC 60601-1.
Vibration-damped steel profiles designed to withstand high-frequency physical resonance near electrostatic chuck power supplies and SEMI F47 sag-immune power converters.
Ruggedized steel and heavy aluminum dynamic slide rails built to withstand violent shock and vibration profiles in compliance with MIL-STD-810 and naval enclosure specifications.
Clear, technical guidance to help electrical engineers, OEM buyers, and supply chain directors shortlist the ideal DIN rail product series.
Both TS-35/7.5 and TS-35/15 DIN rails feature a standardized width of 35 mm between outer flanges according to EN 60715 / IEC 60715. The key difference lies in channel depth: TS-35/7.5 has a 7.5 mm depth and is suitable for general-purpose lightweight devices like relays and terminal blocks. TS-35/15 has a 15 mm depth, offering substantially higher mechanical beam strength and bending resistance, making it essential for heavy power supplies, large transformers, and high-vibration enclosures.
Our automated high-speed cold-rolling and CNC inline punching setup allows us to offer custom length cutting (from 50mm to 2000mm) and specific slotting patterns with zero to minimal setup surcharge on wholesale volume orders (MOQ typically 1,000 units). Purchasing factory pre-cut DIN rails drastically eliminates scrap metal waste and local assembly labor for global OEM customers.
For low-impedance protective earth (PE) grounding, clear zinc trivalent galvanization (Cr3+) and electro-galvanized yellow dichromate steel offer the lowest electrical contact resistance (< 0.01 Ohms). While anodized aluminum provides superior chemical corrosion resistance, the anodized coating acts as an electrical insulator; therefore, un-anodized or conductive clear chromate-treated aluminum must be specified when using the DIN rail as a protective grounding busbar.
Every wholesale shipment is supplied with full material test reports (MTR), certificate of conformity (CoC), RoHS 3 (Directive 2015/863) compliance declarations, REACH SVHC declarations, and salt-spray corrosion test reports (ISO 9227 / ASTM B117). ISO 9001:2015 and ISO 13485 quality control protocols govern all raw material inputs and dimensional inspections.
Yes, provided high-grade structural alloys such as 6063-T6 or 6061-T6 are specified. Heavy aluminum profiles absorb high-frequency vibrational stress effectively while preventing galvanic oxidation in moist or coastal environments. However, for extreme shock-load applications (e.g., naval military systems under MIL-S-901D), heavy-duty 15mm steel G-rails or deep top-hat steel profiles remain the recommended standard.
Simply click the "Send an Inquiry" button on any product card above or click the inquiry trigger in our footer module. Our engineering sales team will review your drawings, material preferences, dimensional tolerances, and volume targets, delivering a comprehensive formal quotation and dispatching sample packages within 24 to 48 hours.
Need custom lengths, specialized punching slot geometries, or anti-corrosion finishes for your industrial cabinet production? Contact our application engineering team today for instant quotes and sample evaluation packages.
