Explore our engineered portfolio of passive filtering platforms, ranging from RF metal cavity bandpass modules and high-power single-phase EMI filters to industrial harmonic suppression cabinets and heavy-duty wedge wire passive intake units.
For over six decades, Astrodyne TDI has engineered custom power supplies, electronic magnetics, and specialized passive filter architectures for mission-critical medical, semiconductor, defense, and industrial applications. Operating under ISO 9001:2015 and ISO 13485 certified quality management systems, our global engineering teams solve complex signal conditioning, noise mitigation, and power quality challenges where off-the-shelf components fail.
Unlike generic component assemblers, our engineering methodology relies on complete internal topology ownership—from custom toroidal inductor winding and high-Q ceramic dielectric resonator tuning to thermal fluid dynamics simulation for liquid-cooled filtering units.
.jpg)
Our manufacturing infrastructure spans multiple passive filter disciplines, delivering tailored electromagnetic solutions engineered specifically for target operating spectrums and power densities.

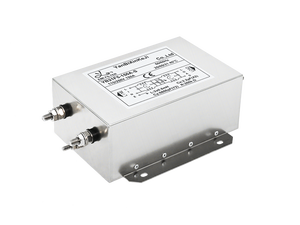

Comprehensive single-phase, 3-phase Delta and WYE, IEC inlet, DC feed-thru, and TEMPEST filtering networks. Designed to attenuate differential-mode and common-mode noise across 150 kHz to 30 MHz, allowing industrial tools and medical carts to pass CISPR, FCC, and MIL-STD limits effortlessly.

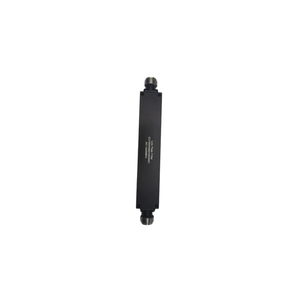

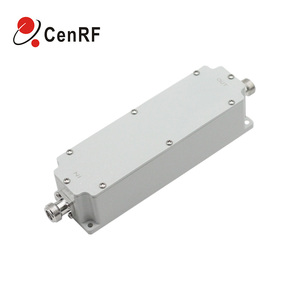

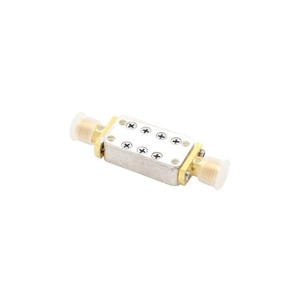

High-Q ceramic cavity bandpass filters and Surface Acoustic Wave (SAW) resonators designed for wireless base stations, radar transmission, and broadcast infrastructure. Featuring high power handling, sharp out-of-band rejection, and IP67 waterproof enclosures for harsh outdoor deployments.

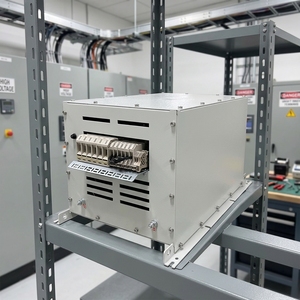

Industrial cabinet power quality solutions (such as the PHF010 series) specifically designed to suppress 5th, 7th, 11th, and 13th order harmonics produced by Variable Frequency Drives (VFDs). Reduces Total Harmonic Current Distortion (THDi) to under 5% while improving power factor.
Specially engineered passive terminal filters for patient-connected medical equipment. Incorporates 2×MOPP isolation pathways, minimal earth leakage currents (<5 µA in standard operation), and high transient voltage surge protection conforming to IEC/EN 60601-1 3rd Edition safety standards.
High-density kilowatt-class filtering networks integrated directly with liquid cooling cold plates. Eliminates internal fan requirements, prevents thermal derating in cleanroom environments, and prevents particulate contamination in semiconductor fabs and sealed military enclosures.

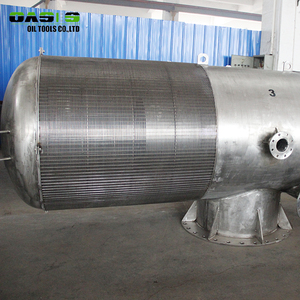

Large-scale passive intake screens for seawater desalination, municipal water treatment, and power plant cooling. Manufactured from corrosion-resistant 316L stainless steel or Super Duplex wedge wire, maintaining uniform low slot velocity to protect aquatic life and downstream filtration systems.
The strategic sourcing landscape for passive electronic components and industrial filtration systems is undergoing rapid transformation driven by four technological catalysts: 5G/6G wireless density, grid harmonic regulations (IEEE 519), semiconductor capital equipment spending, and marine environmental compliance. Sourcing managers and chief technical officers must align component procurement with long-term technological roadmaps.
| Filter Category | Key Operational Specs | Primary Compliance Standard | Emerging Procurement Trend | OEM Customization Scope |
|---|---|---|---|---|
| RF Cavity Filters | Bandpass 400 MHz–6 GHz, Low Insertion Loss (<0.8 dB) | 3GPP, Low PIM (-165 dBc @ 2x43 dBm) | Demand for weatherproof Low-PIM 5G macro base station units | Dielectric material, RF connector type, IP67 cavity sealing |
| Single/3-Phase EMI Filters | 1A–2500A, 115V/250V/480V/600VAC, 50/60Hz | CISPR 11/32 Class B, MIL-STD-461G, UL 60939 | Integration with SEMI F47 sag ride-through power supplies | Dual-stage topology, custom busbars, leakage current selection |
| Passive Harmonic Filters | 50kW–1MW, THDi < 5%, Power Factor > 0.98 | IEEE 519-2022, IEC 61000-3-12 | Mandatory retrofit in VFD HVAC systems & green data centers | Enclosure NEMA rating, contactor bypass, reactor winding material |

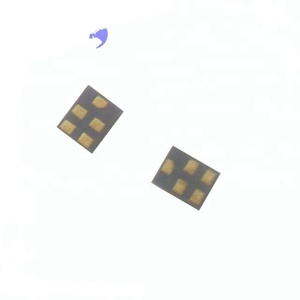

| SAW Bandpass Filters | Sub-3GHz (e.g., 2442MHz), Compact Surface Mount | RoHS / REACH Compliant, AEC-Q200 | Shift toward high temperature stability and narrow band rejection | Footprint matching, tape-and-reel packaging, ceramic substrates |
| Wedge Wire Intake Screens | Continuous Slot 0.5mm–10mm, Flow Rates up to 50,000 GPM | Clean Water Act Section 316(b), ASME Sec VIII | Widespread adoption in ocean desalination plants & offshore platforms | Alloy selection (316L/Duplex/Copper-Nickel), hydroburst air backwash |
Sourcing leaders prioritizing supply chain resilience are increasingly consolidating vendor rosters by selecting full-spectrum OEM/ODM partners capable of delivering both low-power PCB-mount filters and megawatt-class industrial power conditioning units under unified quality management systems.
As cellular transmitters utilize higher RF power alongside sensitive receivers within identical frequency bands, non-linear distortion (PIM) becomes a primary bottleneck. Future passive RF filters require advanced silver-plating techniques, torque-controlled laser welding, and non-magnetic stainless steel alloy structures to achieve continuous performance exceeding -165 dBc.
With silicon carbide (SiC) and gallium nitride (GaN) power semiconductors pushing switching frequencies past 500 kHz, passive inductors and capacitors face higher thermal stresses within smaller physical envelopes. Direct-to-component liquid cold plate cooling for high-power EMI filters is becoming standard in semiconductor fabs and electric vehicle fast-charging stations.
While Active Harmonic Filters (AHF) offer high flexibility, their semiconductor complexity introduces failure risks and high initial expenditures. Modern power quality trends favor hybrid architectures—combining heavy-duty passive LC trap networks to eliminate dominant 5th and 7th harmonics with compact active modules handling residual higher-order noise.
Get immediate technical clarity on common specification, topology, compliance, and custom fabrication challenges encountered during system integration.
Whether you require a modified standard EMI filter, an ultra-low PIM RF cavity bandpass unit, or a complete custom passive harmonic cabinet engineered to your strict mechanical envelope, our technical sales team is ready to review your schematics and compliance targets.
